Introduction
CSTR reactor: This reactor is mainly used in the industry and is often used for the liquid phase. A point that is very important in this reactor. This is ideally because the reactor has a stirrer. The materials inside the reactor are homogeneous, the characteristics of the materials inside the reactor and the outlet are the same. Also, there will be no changes in temperature and concentration inside the reactor.
Key Features of a CSTR:
- Complete mixing: The contents of the reactor are thoroughly mixed, ensuring a uniform concentration of materials throughout.
- Constant volume: The volume of liquid within the reactor remains constant.
- Constant temperature: The reactor temperature is typically maintained at a constant value to optimize reaction conditions.
- Continuous operation: Raw materials are continuously fed into the reactor, and the product is continuously withdrawn.
Advantages of a CSTR:
- Easy temperature control: The presence of a stirrer and cooling system makes temperature control straightforward.
- Continuous production: Enables continuous product output.
- Suitable for homogeneous reactions: Well-suited for reactions occurring in a single phase (e.g., liquid or gas).
- High flexibility: Allows for easy adjustment of operating conditions such as feed rate, reactant concentrations, and other parameters.
Disadvantages of a CSTR:
- Lower conversion: Due to complete mixing, the reactant concentration at the reactor outlet is lower than at the inlet, resulting in lower reaction conversion compared to some other reactor types.
- Sensitivity to flow rate changes: Variations in the feed flow rate can cause fluctuations in the concentrations and temperature within the reactor.
Propylene glycol is a substance that is generally used as a food additive or in many cosmetics and hygiene products. Propylene glycol is produced from the reaction of propylene oxide and water in an aqueous environment. The reaction is carried out in a reactor with a volume of 2.27 cubic meters. Simulate the above process and find the characteristics of output current and conversion percentage.
C3H6O+H2O → C3H8O2
Description of The Process
In this project, the simulation of propylene glycol reactor has been done with the help of Aspen Plus software according to the article.

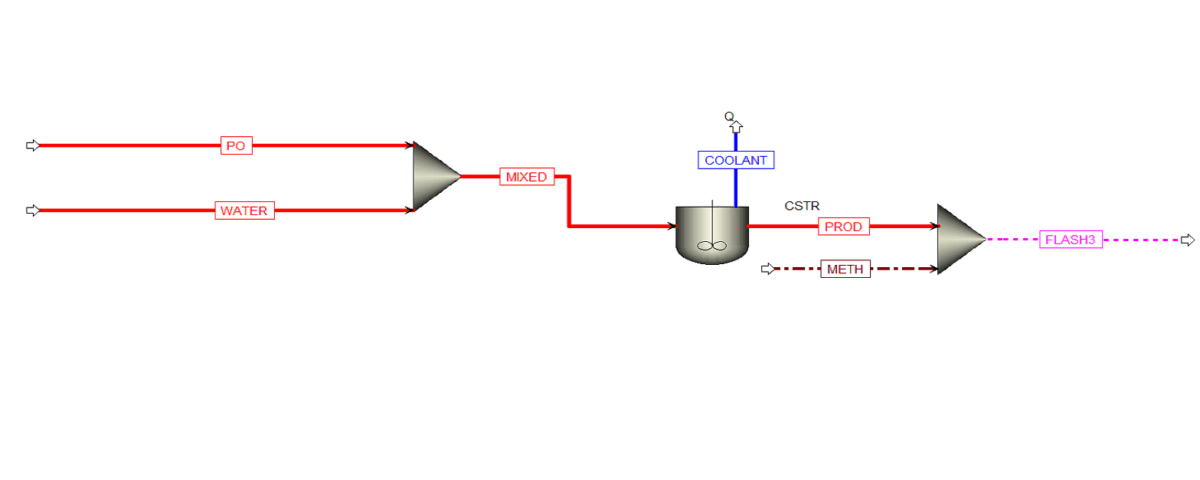

Simulation of Propylene Glycol Reactor by Aspen Plus
In this project, the simulation of propylene glycol reactor is simulated by Aspen Plus. The project has a complete report. To buy the project or get more information about it, proceed through the link below.
